SEM 680D wheel loader

$500.00 $400.00

Price: $500.00 – $550.00

Brand: Caterpillar/SEM Type: wheel loader
Model: SEM 680D Rated load: 8 ton
Operating weight: 24,140 kgs Bucket capacity: 4.2 m3
Engine power: 232 kw Warranty: 1 year
Categories: SEM, Earth Moving Machinery, Wheel Loader, SEM, Brand
Share
0
E-MAIL: eric@chengyumachinery.com
WhatsApp/WeChat: 008615634015526
  • Description

Machine specifications



Optimized Engine

  • Per-kins 2206D Engine delivering 232 KW @ 1800rpm
  • Per-kins’ fully validated Mechanically actuated Electronic Unit Injector (MEUI) provides consistent reliability and durability
  • Engine block and Cylinder head made out of grey cast iron. Wall design offers reduced sound levels and increased rigidity
  • Integral all-steel piston, forged connecting rod provides high reliability, cylinder liners are replaceable

Efficient Hydraulic System

  • Single Jo-ystick lever with pilot hydraulic control and KD (Kick Down) function
  • Load sensing dual-variable flow merging hydraulic system enables faster response time, more efficiency, energy saving and more efficient traction
  • Key hydraulic components are supplied by renowned global suppliers ensuring improved reliability
  • Hydraulically driven automatically controlled Cooling fan ensures low fuel consumption, lower noise and improved cooling efficiency
  • Load sensing steering system with good controllability and high flexibility
  • Integrated Hydraulic valve uses Ca-terpillar technology to achieve simultaneous boom raise and bucket dump operations

Operator Station

  • Ergonomically designed cab, wide viewing area with stereoscopic feeling
  • Multi-directional adjustable mechanical suspension seat, fresh air pressurized system; More comfortable setting to drive, the operator can work longer time continuously
  • Optional Rear Camera with monitoring system, for safe operation and more comfort
  • Combined progressive instrument with three-level alarm, which can display fault codes, shift information, etc., the safety information is clear and accurate
  • Full hydraulic brake disengaging function can reduce brake overheating and extend the life of brake components

Reliable Drivetrain

  • Ca-terpillar design transmission has Electrohydraulic control valve and single clutch speed shift. Operator can choose between Auto / Manual speed shifts. Kick Down feature provides high quality shifting experience and comfort
  • Planetary gear design with high power density ensures a compact structure, light weight and smooth transmission
  • Ca-terpillar cast aluminum torque converter with free wheel stator provides 5% higher efficiency
  • Classic 4 segment axle technology from caterpillar – proven technology with higher reliability
  • Multiple disc, wet type, built-in service brakes for stable performance and longer life. Easy to observe the wear of the friction discs
  • Hydraulic caliper disc brake for parking with stable performance

Advanced Cooling System

  • Cooling system adopts Ca-terpillar technology, better cooling efficiency and more reliable
  • High ambient cooling package enables continuous working even at an ambient temperature of 50°C
  • High efficiency suspension mounts are installed on the cooling package which ensure reliability in heavy loping work condition

Solid Structure

  • 4-piece tower design of front frame ensures higher torsional strength
  • Box section design of rear frame offers improved reliability
  • Performance Series Bucket design ensures better penetration and 110% fill factor

Serviceability

  • Modular design of transmission and torque convertor make the repair and service easier
  • Centralized lubrication points make maintenance easy
  • Pressure testing ports and SOS sampling ports available for hydraulics and braking System which make diagnose easier
  • Large spread articulation design good for maintenance and service
  • Both transmission and engine with self diagnose system make service easy
  • Optional automatic lubrication system for simple and reliable maintenance

Safety

  • Ca-terpillar Production System (CPS) compliant manufacturing process
  • 3-point contact is ensured for operator and technician to climb up/down the machine
  • Backup alarm and backup lights ensure machine safety
  • The painting process is environmentally friendly without heavy metal pollution
  • Dual steering stop plate design reduces steering impact and improves comfort
  • Optional rear view monitoring system offers better view for safe and comfortable operations

Machine Applications

  • It can be widely used in high productivity demand applications, ports, aggregates, mining and quarry
  • Also suitable for loose materials operations, such as sand and coal yard and job construction site
  • Load more, quick response and low fuel consumption

Machine data

Operating Weight (kg) 24140
Rated Load (kg) 8000
Bucket Heaped Capacity (m3) 4.0CB
Overall dimension  (mm) 9166*3220*3566
Traction Force (kn) 224
Minimum Turning Radius (mm) 7891
Steering Angle (°) 35
ENGINE MODEL PERKINS 2206D
Rated Power (KW) 232
Rated Speed (rpm) 1800
Displacement(L) 13
TRANSMISSION Type TR35
Transmission Type Hydro electric control

transmission

Torque Converter Single stage three ekement centripetal
Gear shift F4/R4


Forward

Forward/Reverse Gear 1 (km/h) 7.2/8.1
Forward/Reverse Gear 2 (km/h) 12.3/14
Forward/Reverse Gear 3 (km/h) 21.5/24.5
Forward/Reverse Gear 4 (km/h) 37/41
AXLES Inclination (°) 30
Wheel Tread (mm) 3001
Ground Clearance (mm) 469
Main Drive Reduction Type Spiral bevel gear single stage
Ffinal Drive Reduction Type Planetary type one grade
Oscillating Angle 13
BRAKE Service Brake  Multi-disc wet type
Parking Brake hydraulic caliper
WORKING EQUIPMENT Maximum Breaking Force (kn) 224
Dumping Height (mm) 3204
Dumping Reach (mm) 1319
With Pilot Control (mm) YES
HYDRAULIC SYSTEM



Rated Pressure (MPa) 30
Lifting Time (sec) 5.64
Total Time (sec) 10.2
TIRES Size 26.5-25
Layer 24
Pattern Type L3/E3

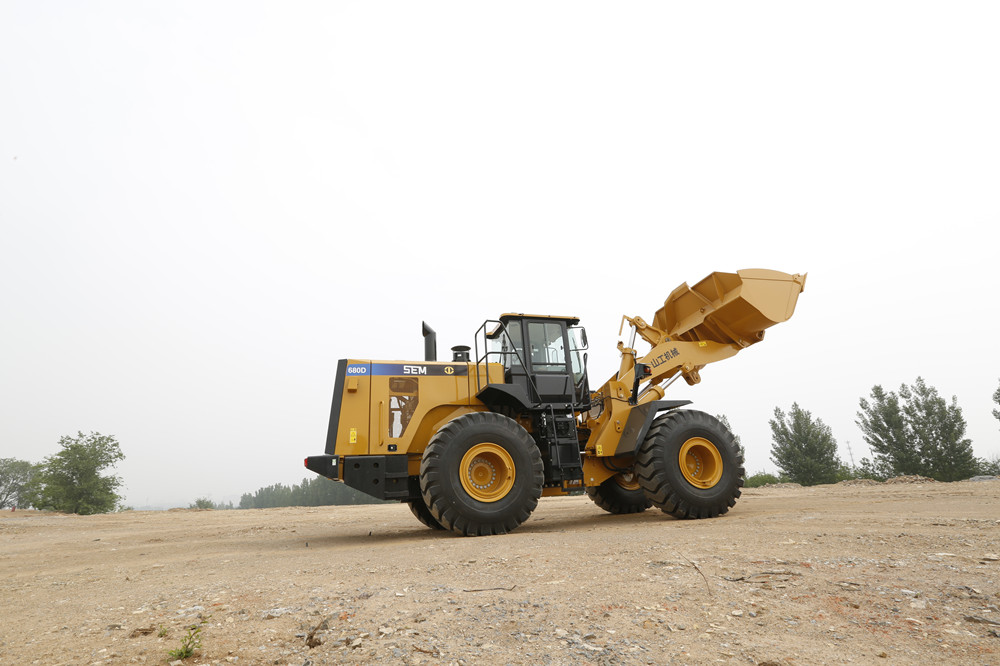

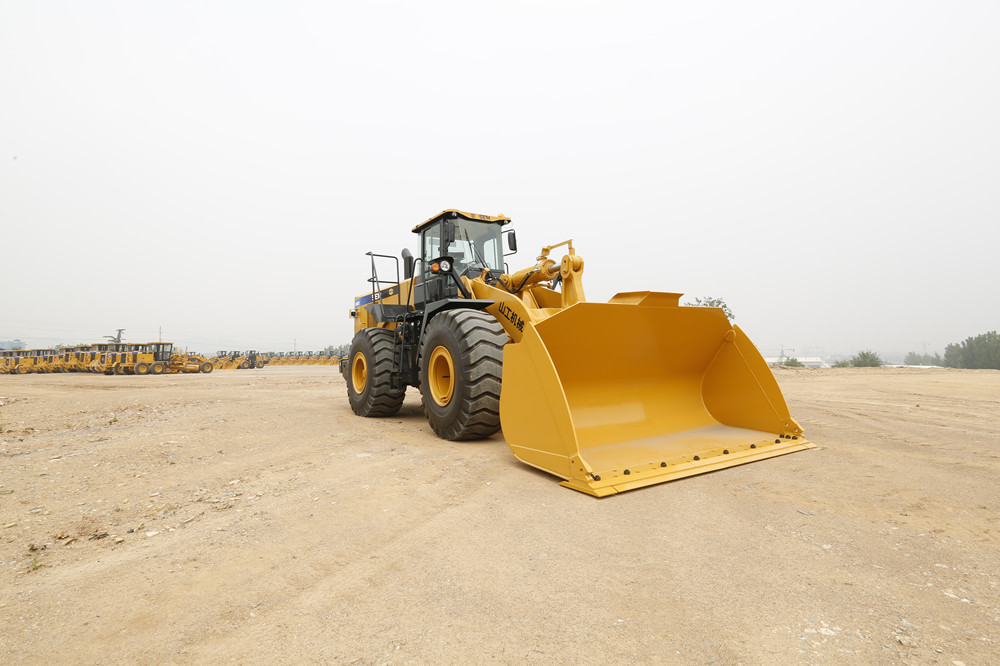

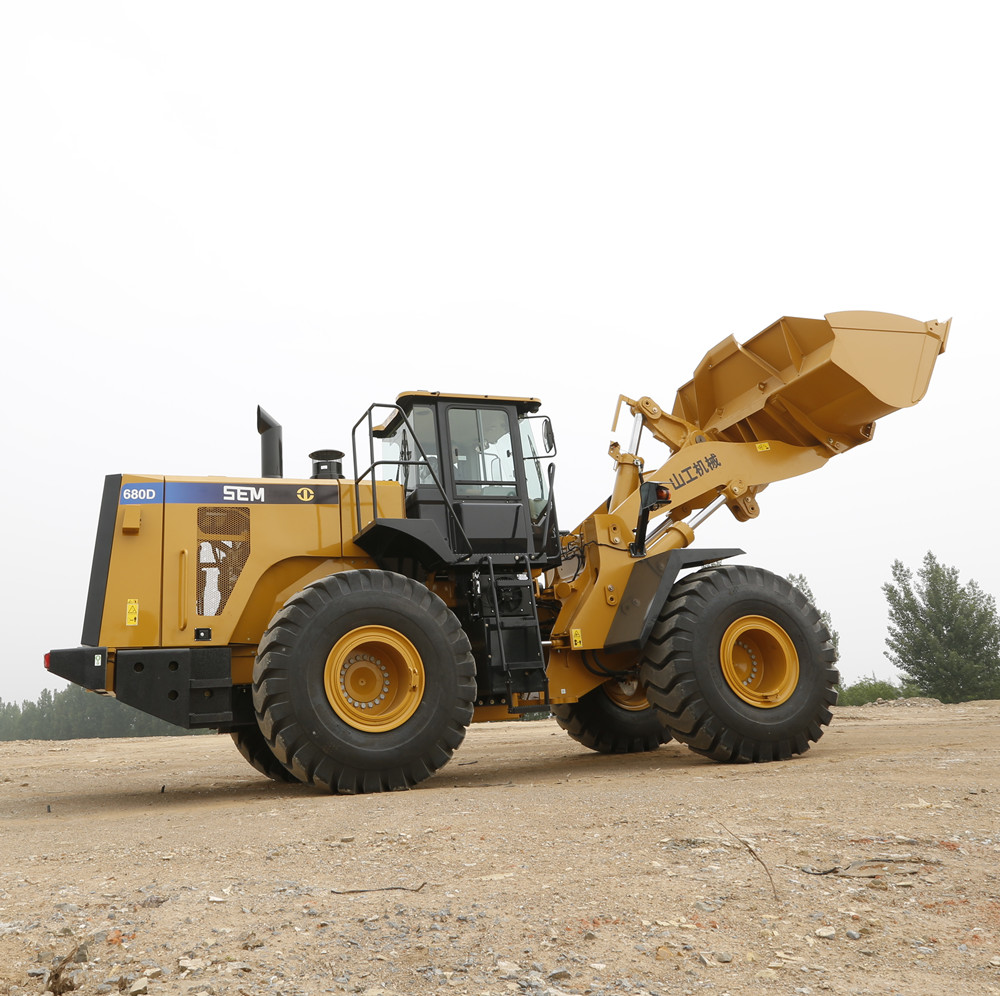

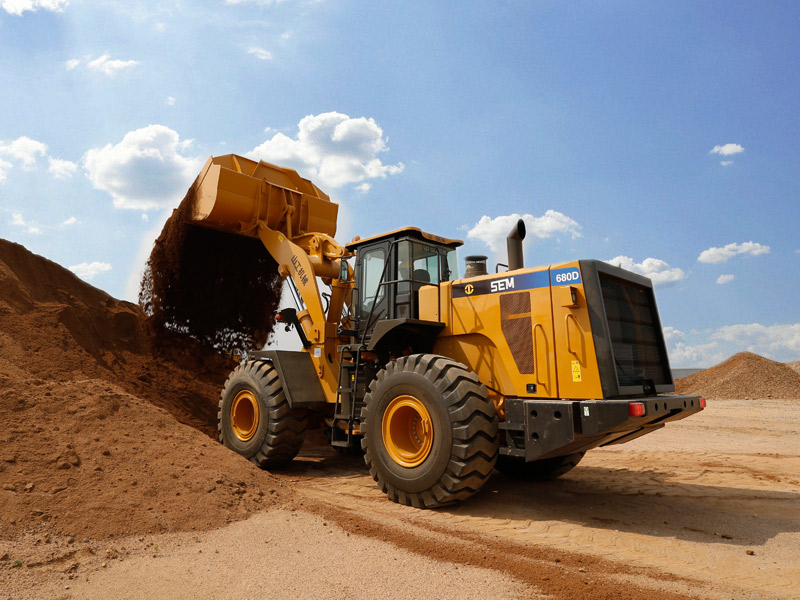

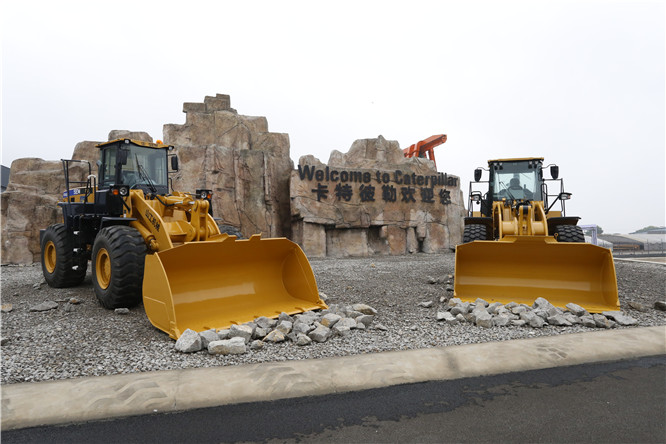

Machine photo
