SEM 660B wheel loader

Quick details

Brand: Caterpillar/SEM Type: wheel loader
Model: SEM 660B Rated load: 6 ton
Operating weight: 19,600 kgs Bucket capacity: 3.5 m3
Engine power: 175 kw Warranty: 1 year
Categories: SEM, Earth Moving Machinery, Wheel Loader, SEM, Brand
Share
0
E-MAIL: eric@chengyumachinery.com
WhatsApp/WeChat: 008615634015526
  • Description



Machine specifications

• Remarkable Performance improvements;
• WDEC Stage II engine, reliable SEM transmissions/axles;
• World class technology hydraulic components and an outstanding cooling system;
• Significant operator comfort/serviceability improvements;
• Premium operator comfort with a user-friendly monitor and control system.

Transmission
• In-house made SEM TR200 power-shift, countershaft gearbox;
• Torque Converter isolated with gearbox, easy approach for service;
• More gears’ selection, 4 forward / 4 reverse.
Hydraulic
• World class hydraulic component;
• SAE&DIN Standard Hose;
• Improved system pressure;
• Joystick control.
Engine
• WD10 Engine meet China Stagel emission control;
• High fuel efficiency;
• SDEC C6121 engine is optional.

Axle
• SEM latest version axle, target on reliability and serviceability;
World class technology background, built for heavy duty application.



Machine data



660B
Rated Load 6000 kg
Bucket Capacity 3.3/5.5 m3
Operation Weight 19,600 kg
Dimension
Length 8440 mm
Width(outside of bucket) 3075 mm
Height 3410 mm
Wheel Base 3350 mm
Dump Reach 1361 mm
Dump Clearance(To Teeth) 2973 mm
Bucket Pin @ Highest 4196 mm
Engine
Model Shanghai Diesel SC11CB / WD10
Rated Power 175KW 2200 rpm
Operation Specifications
Max. Rim-Pull 187 kN
Breakout Force 206 kN
Hydraulic System Pilot Control
Implement Pump Flow  113 ml/r
System Pressure 18 Mpa
Boom Raise 5.3 s
Bucket Dump 1.22 s
Boom Lower 3.66 s
Circulations 10.18 s
Steering System
Steering Angle 38 degree
System Pressure 16 Mpa
Min. Turning Radius over Wheel Center 6000 mm
Min. Turning Radius ove Outside of  Bucket 7108 mm
Transmission Countershaft, Power-shift, 3 Element Torque Converter
Model SEM TR200
Travel Speed       I        II           III        IV
Forward    8.1    15.2     23.3   39.4
Reverse    8.1    15.2     23.3   39.4
Axle
Brand SEM -B
Front Axle Fixed with Front Frame
Rear Axle Fixed with Oscillating Frame ±11
Brake System
Service Brake Dry Caliper with Disc , Air-over-oil
Parking Brake Drum Type, Spring Applied & Air-released
Tire
Size 23.5-25
Layer 20
Texture L-3 / E-3
Tire Pressure (F/R) 400 Kpa / 350 Kpa
Service Refill Capacity
Fuel Tank 279 L
Hydraulic Tank 170 L
Engine Oil 27.5 L / 21 L
Cooling System 46 L
Transmission 55 L
Axle (F/R) 40 L / 40 L

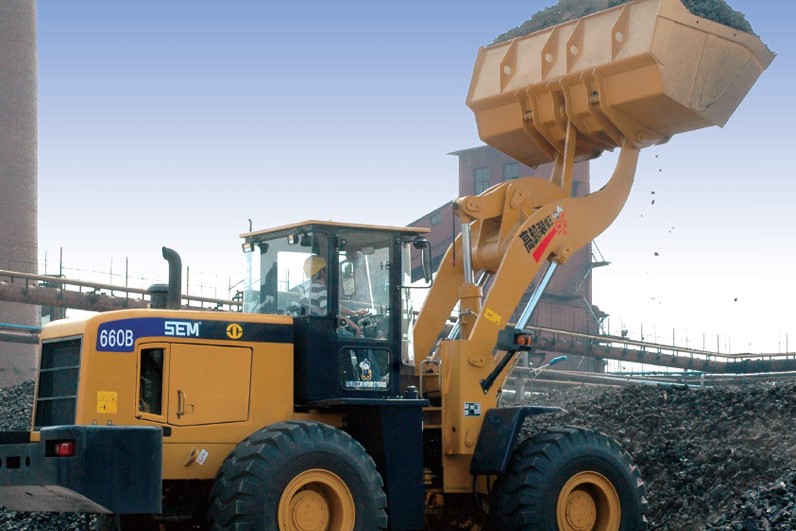

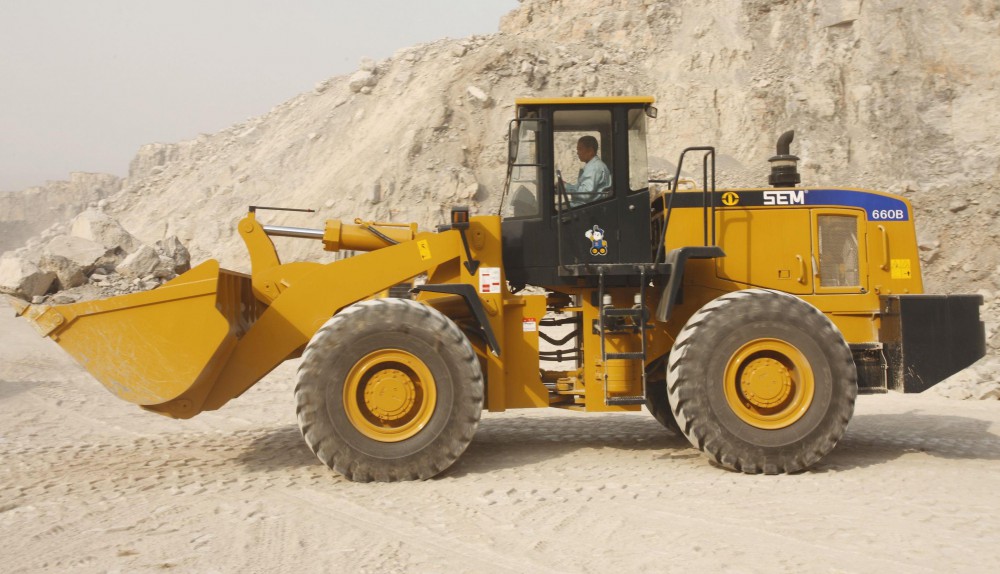

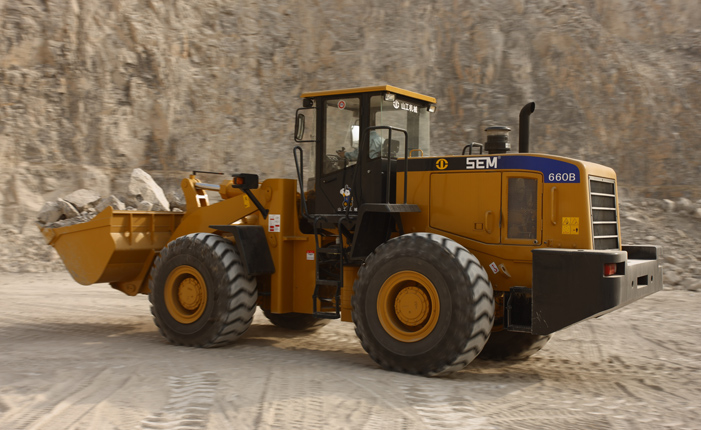

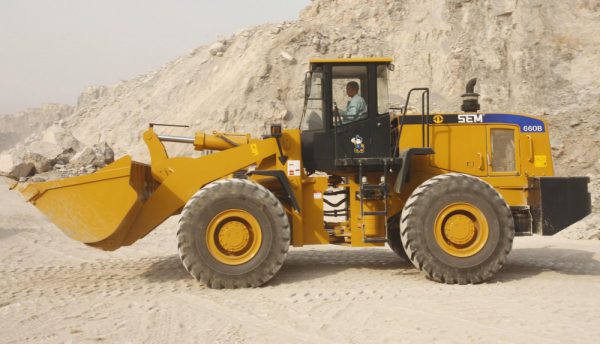

Machine photos
