SEM 659C/659 wheel loader
Quick details
| Brand: Caterpillar/SEM | Type: wheel loader |
| Model: SEM 659C | Rated load: 5 ton |
| Operating weight: 17,000 kgs | Bucket capacity: 2.7 m3 |
| Engine power: 162kw | Warranty: 1 year |
Machine Applications
* Based on proven Caterpillar MWL countershaft transmission brings industry leading durability and reliability;
* Decades of wheel loader transmission design and manufacturing experience, world class components technology and sourcing;
* World class technology axle utilizes Caterpillar technology with high levels of reliability
* Optimized bucket with improved structure increases productivity and reduces operating cost
* Optimized implement valve with joystick pilot control hydraulic system improves lift and tilt forces
* Spacious, comfortable and luxurious cab;
* Comfortable suspended seat with fully adjustable backrest and armrest; Joystick implement hydraulic control
* Best-in-class electrical system, optimized wiring harness design and routing;
* Optimized using Finite Element Analysis (FEA) techniques refined for heavy duty applications
Main Specifications
| Main Specifications | |
| Rated Load Capacity | 5,000 kg |
| Operating Weight | 17,000 kg |
| Bucket Capacities | 2.7-4.5 m³ |
| Overall Dimensions L*W*H | 8176x3068x3440 mm |
| Engine | |
| Model | SDEC SC11CB 220 |
| Rated Gross Power | 162 kW/217 hp |
| Peak Torque | 912 Nm |
| Operating Specifications | |
| Max.Rimpull | 151 kN |
| Breakout Force | 168 kN |
| Hydraulic System Pressure Setting | 19 MPa |
| Hydraulic Cycle Times | 10.2 s |
| Steering System | |
| Steering Angle Left/Right | 38º±1º |
| Minimum Turing Radius Over Rear Tire | 5,917 mm |
| Minimum Turing Radius Over Bucket | 6,931 mm |
| Transmission | SEM 160A |
| Type | Countershaft Powershift |
| Gears | F4/R3 |
| Axle | |
| Brand | SEM SO32 |
| Front | Fixed with Calipers |
| Rear | Fixed with Osc.Frame and Calipers |
| Brake System | |
| Service Brake | Dry&Caliper, Air-to-Oil Control |
| Parking Brake | Drum-Type Shoe Brake,Spring Applied &Air Released |
| Tires | |
| Size | 23.5-25 |
| Type | Bias |

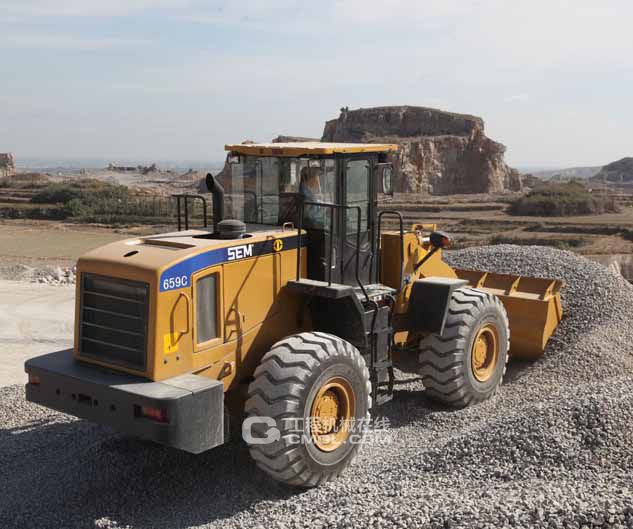

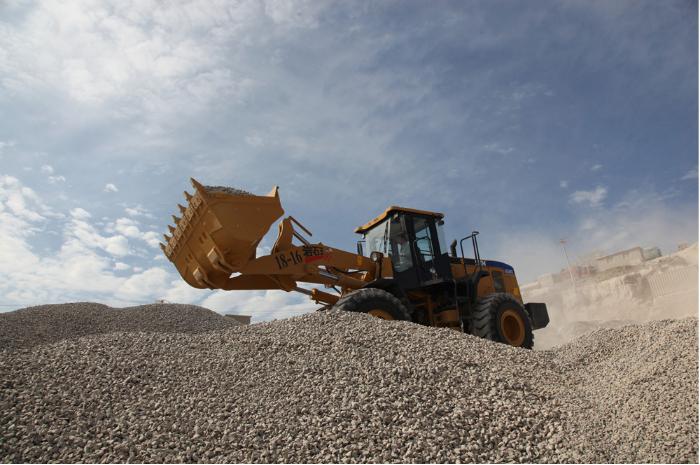

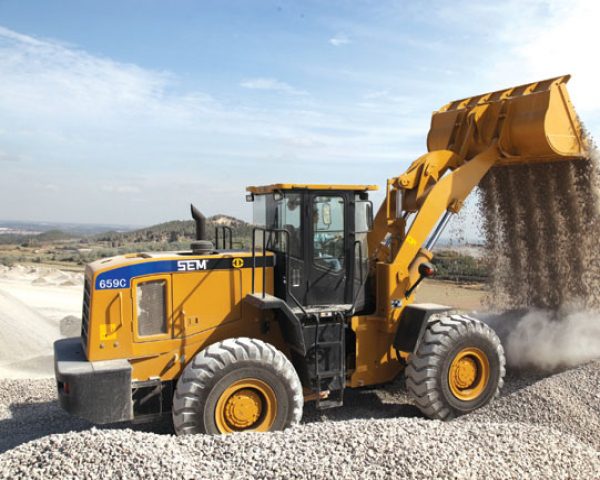

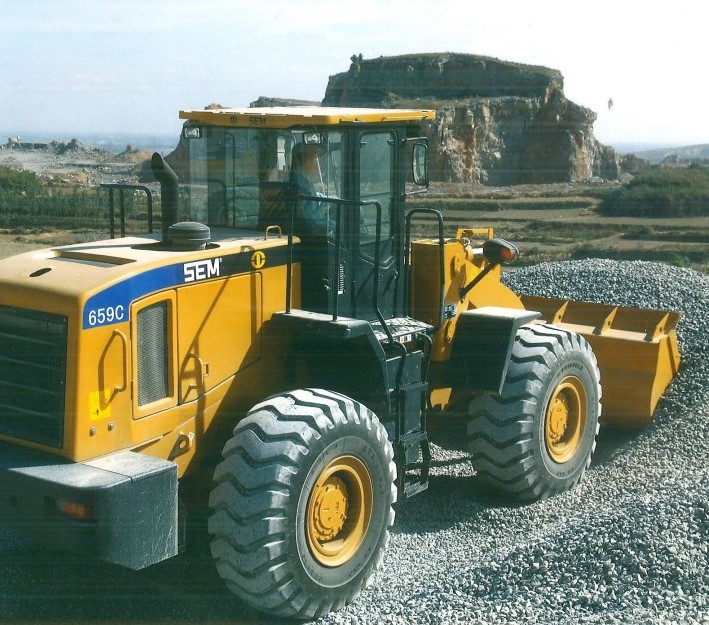

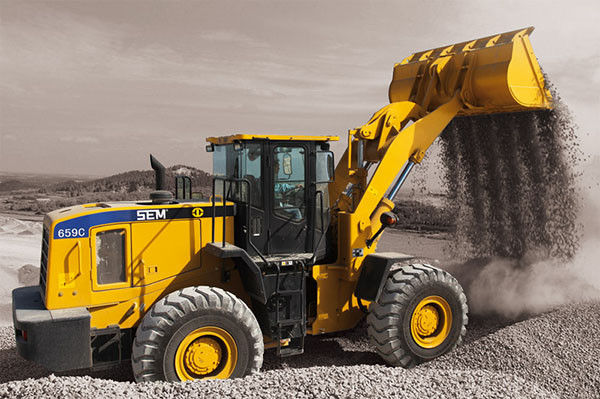

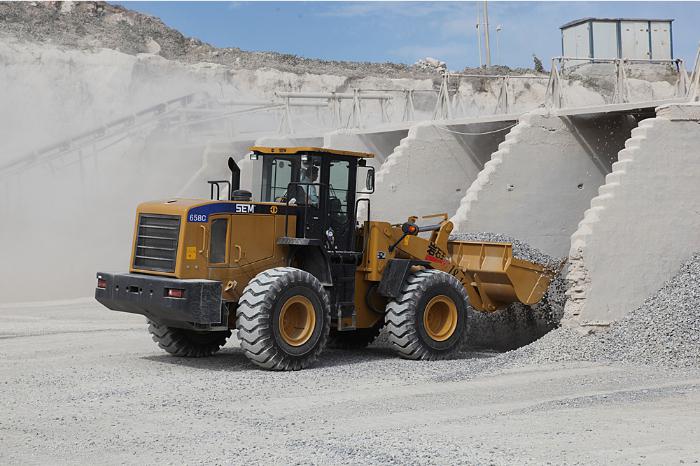

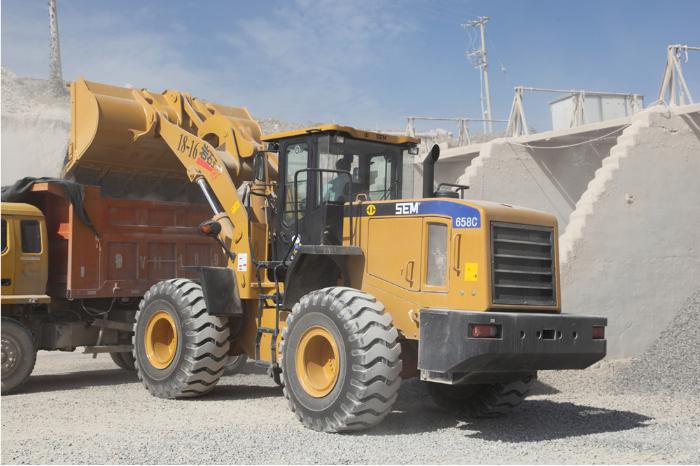

Machine Photos
