SEM 658C/658 wheel loader

Quick details

Brand: Caterpillar/SEM Type: wheel loader
Model: SEM 658C Rated load: 1.8 ton
Operating weight: 17,000 kgs Bucket capacity: 2.7 m3
Engine power: 162 kw Warranty: 1 year
Categories: SEM, Earth Moving Machinery, Wheel Loader, SEM, Brand
Share
0
E-MAIL: eric@chengyumachinery.com
WhatsApp/WeChat: 008615634015526
  • Description

Machine specifications



* Based on proven Caterpillar MWL countershaft transmission brings industry leading durability and reliability;

* Decades of wheel loader transmission design and manufacturing experience, world class components technology and sourcing;

* World class technology axle utilizes Caterpillar technology with high levels of reliability

* Optimized bucket with improved structure increases productivity and reduces operating cost

* Optimized implement valve with joystick pilot control hydraulic system improves lift and tilt forces

* Spacious, comfortable and luxurious cab;

* Comfortable suspended seat with fully adjustable backrest and armrest; Joystick implement hydraulic control

* Best-in-class electrical system, optimized wiring harness design and routing;

* Optimized using Finite Element Analysis (FEA) techniques refined for heavy duty applications



Machine data



Main Specifications
Rated Load Capacity  5,000 kg
Operating Weight  17,000 kg
Bucket Capacities  2.7-4.5 m³
Max.Gradeability (°)  30°
Overall Dimensions L*W*H* (mm)  8176×3068×3440
Engine
Rated Gross Power  162 kW/217hp
Model  SDEC SC11CB 220
Bore  120.65 mm
Stroke  152.4 mm
Displacement  10.45 L
Peak Torque  912 Nm
Operating Specifications
Max. Rimpull  155 kN
Breakout Force  168 kN
Hydraulic System
Pump Displacement-Implement Pump  97 ml/rev
System Pressure Setting  19 MPa
Hydraulic Cycle Times :
Raise  5.5 s
Dump  0.9 s
Lower (Empty,Float Down)  3.8 s
Total  10.2 s
Steering
Steering Angle Left/Right  38°±1°
Minimum Turning Radius Over Rear Tire  5867 mm
Minimum Turning Radius Over Bucket  6931 mm
Axle
Brand SEM SI28
Front  Fixed with Wet Brake
Rear Trunnion Mounted Axle and Wet Brake
Maximum Single-Wheel Rise and Fall  Oscillating±12°
Brake System
Service Brake  Inboard Wet Brake
Parking Brake  Drum-Type Shoe Brake,Spring Applied & Air Released
Transmission SEM
Type Countershaft Power Shift
Travel Speed: | ||
Forward  7.0 km/hr 13.0 km/hr
Reverse  7.0 km/hr 13.0 km/hr
Travel Speed: Ⅲ Ⅳ
Forward  22.3 km/hr 35.1 km/hr
Reverse  22.3 km/hr
Service Refill Capacities
Fule Tank  252 L
Cooling System  50 L
Engine Lubricating Oil  23 L
Oil for Converter and Gear Box  60 L
Differentials and Final Drives:
Front  40 L
Rear  35 L
Hydraulic Tank  230 L
Tires
Size  23.5-25
Type  Bias
Layers 16
Textured Type  L3/E3
Air Pressure  Front 400 kPa/Rear 350 kPa

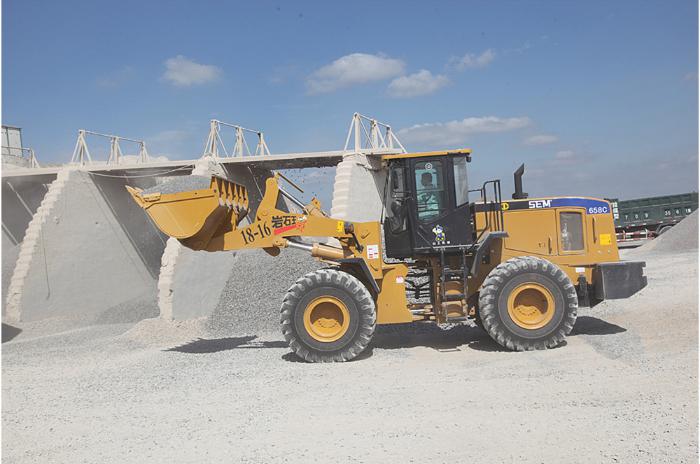

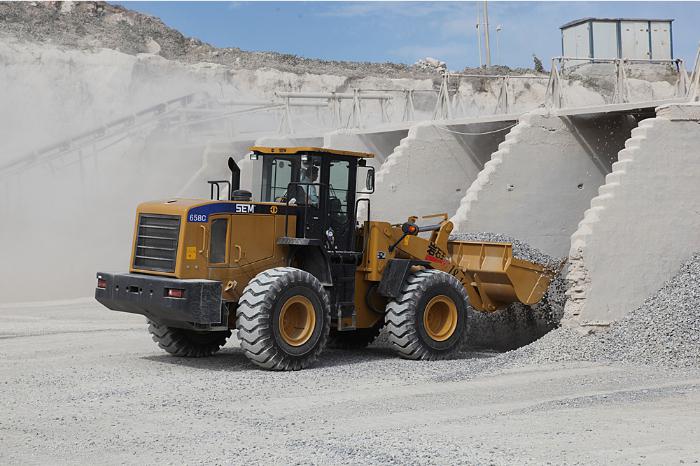

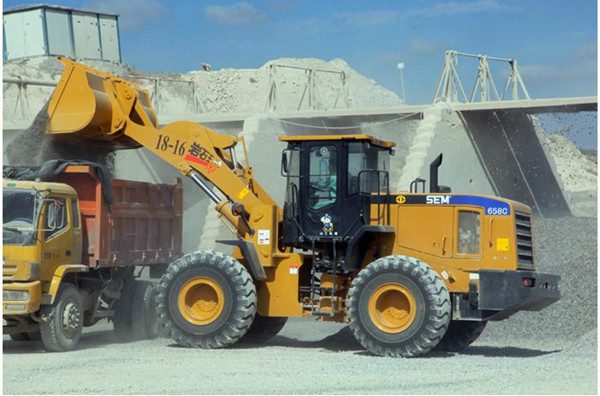

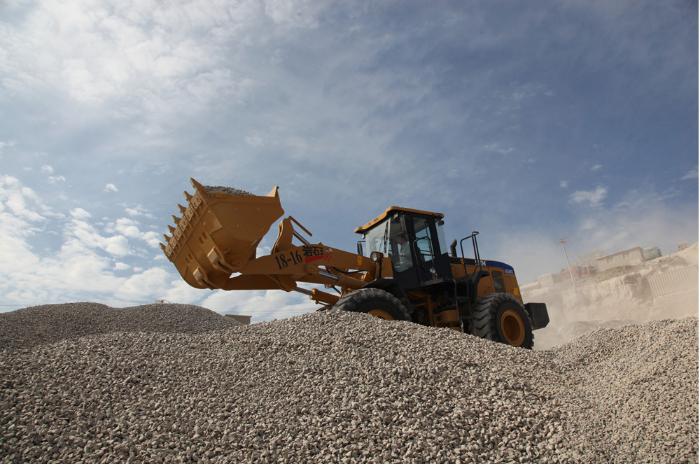

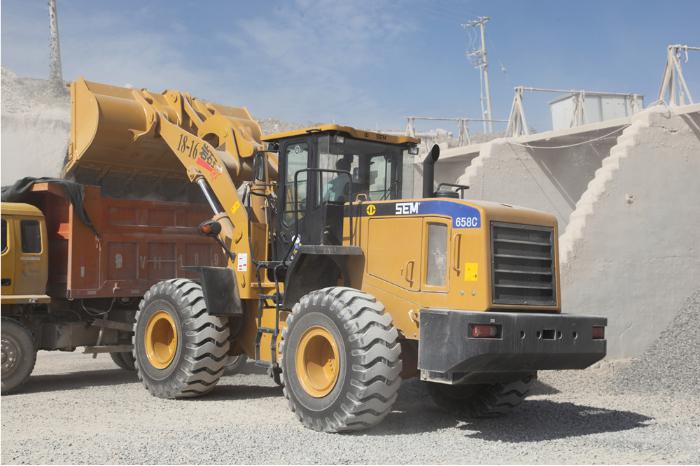

Machine photos
