SEM 652B wheel loader

Quick details

Brand: Caterpillar/SEM Type: wheel loader
Model: SEM 652B Rated load: 5.0 ton
Operating weight: 16,000 kgs Bucket capacity: 2.7 m3
Engine power: 154 kw Warranty: 1 year
Categories: SEM, Earth Moving Machinery, Wheel Loader, SEM, Brand
Share
0
E-MAIL: eric@chengyumachinery.com
WhatsApp/WeChat: 008615634015526
  • Description

Machine specifications

1. Remarkable performance improvements
2. Higher productivity and fuel efficiency
3. Larger bucket, longer wheelbase for more stability
4. World class technology hydraulic components and a WDEC Stage II engine
5. Reliable SEM transmissions, braking system
6. Premium operator comfort with a user-friendly monitor and control system

Machine data

EM652B Main Specifications
Rated Load Capacity 5,000 kg
Operating Weight 16,000 kg
Bucket Capacities 2.7 – 4.5 m 3
Overall Dimension L*W*H(mm) 7960*2745*3380
Engine
Rated Gross Power 154 kW @ 2100 rpm
Model  WD10G220E12 -Stage 2
Bore  126 mm
Stroke  130 mm
Displacement 9.726 L
Peak Toque  920 Nm
Operating Specifications
Max.Rim-pull 160 kN
Breakout Force  150 kN
Full Turn Static Tipping Load  90 kN
Hydraulic System
Modelv Mechanical Control
Pump Flow-Implement Pump  112 mL/rev
System Presure Setting 17 Mpa
Hydraulic Cycle Time
       Raise 5.6 s
       Dump 1.3 s
       Lower(Empty,Float Down) 3.8 s
Total 10.7 s
Steering
Steering Angle Left/Right 35°
Minimum Turning Radius Over Rear Tire 6279 mm
Minimum Turning Radius Over Bucket 7026 mm
Axle
Brand Meritor – 50
Front Fixed with Calipers
Rear Fixed with Osc. Frame with Calipers
Maximum Single-Wheel Rise and Fall  Oscillating ± 11°
Brake System
Service Brake Dry & calipers , Air to oil control
Parking Brake Drum type shoe brake , Spring applied & air released
Transmission
Brand SEM TR200 / B-YJ375
Type  Countershaft, Power shift
Travel Speed
   Forward 1 8 km/hr
   Forward 2 15.5 km/hr
   Forward 3 23.9 km/hr
   Forward 4 41.9 km/hr
   Reverse 1 8 km/hr
   Reverse 2 15.5 km/hr
Service Refill Capacities
Fuel tank 266 L
Cooling System 38 L
Engine Lubricating Oil 19 L
Oil for Converter and Gear Box 55 L
Differentials and Final Drivers
    Front 26 L
    Rear 26 L
Hydraulic Tank 150 L
Tires
Size 23.5 – 25
Layer 16
Textured Type L3/E3
Air Pressure Front 392 kPa / Rear 343 kPa
Optional Equipment
Air Conditioner Cab Heater
Beacon Coal Bucket & U type Boom
Longer Lift  Arm QC & Worktools

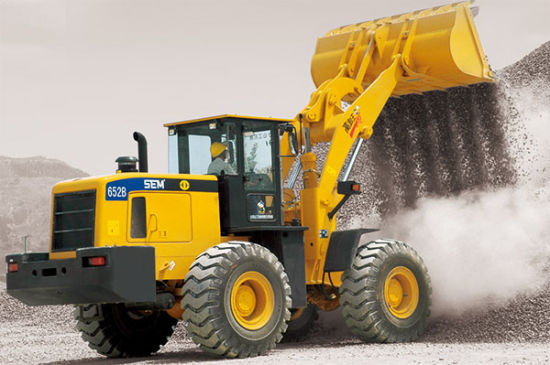

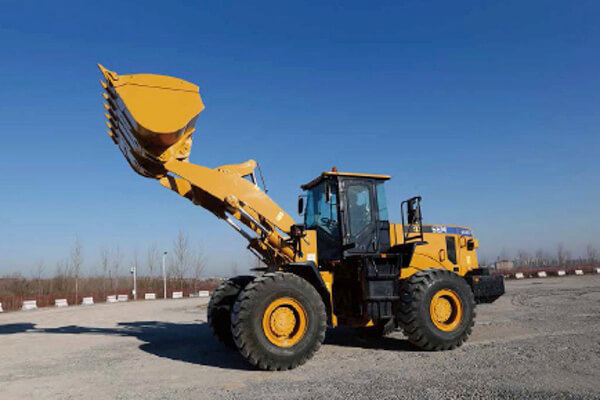

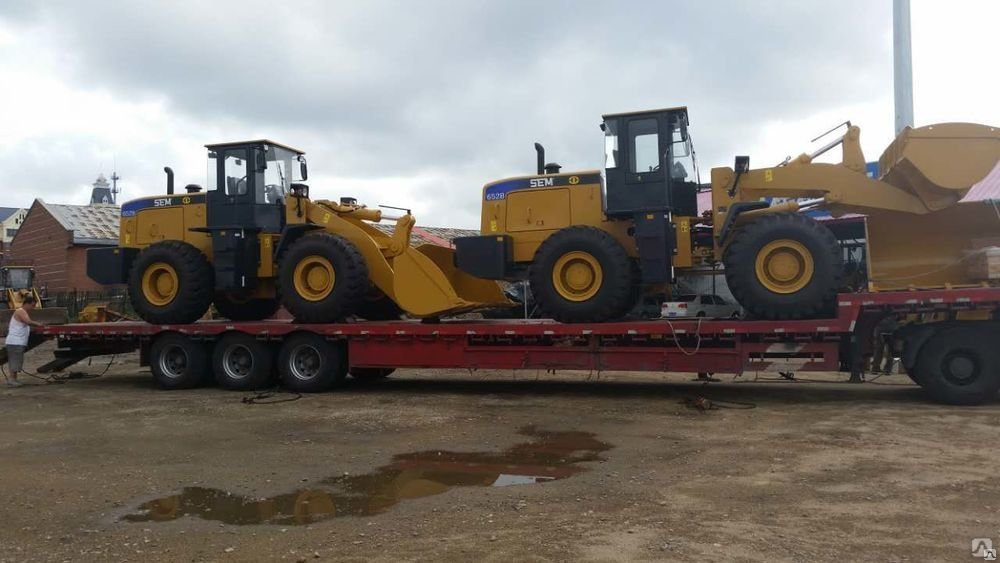

Machine photos
