SEM 630B wheel loader
Quick details
| Brand: Caterpillar/SEM | Type: wheel loader |
| Model: SEM 630B | Rated load: 3.0 ton |
| Operating weight: 9,700 kgs | Bucket capacity: 1.5 m3 |
| Engine power: 92 kw | Warranty: 1 year |
Machine speicifications
SEM Wheel Loader SEM630B ( made by caterpillar company)
1. Stage II emission engine, optimized torque converter;
2. 3.1 meters unloading height reaching;
3. Cooling system meets ambient temperatures of -20~43° C;
4. Built-in engine damping for less vibration and noise;
5. DIN standard high-pressure hoses, optimized pipeline design;
6. Completely new electrical system and new connection design;
With excellent quality and considerate after-sales service, it gets high reliability and good reputation in domestic and foreign market.
Machine data
| SEM630B Main Specifications | |
| Rated Load Capacity | 3,000 kg |
| Operating Weight | 9,700 kg |
| Bucket Capacities | 1.4 – 2.5 m 3 |
| Overall Dimension L*W*H(mm) | 6890*2440*3080 |
| Engine | |
| Rated Gross Power | 92 kW@ 2200rpm |
| Model | Deutz TD226B Stage 2 |
| Bore | 105 mm |
| Stroke | 130 mm |
| Displacement | 6.75 L |
| Peak Toque | 515 Nm |
| Operating Specifications | |
| Max.Rim-pull | 98 kN |
| Breakout Force | 127 kN |
| Full Turn Static Tipping Load | 55 kN |
| Hydraulic System | |
| Model | Mechanical Control |
| Pump Flow-Implement Pump | 100 mL/rev |
| System Presure Setting | 16.5 Mpa |
| Hydraulic Cycle Time | |
| Raise | 4.83 s |
| Dump | 1.07 s |
| Lower(Empty,Float Down) | 3.25 s |
| Total | 9.15 s |
| Steering | |
| Steering Angle Left/Right | 36° |
| Minimum Turning Radius Over Rear Tire | 5097 mm |
| Minimum Turning Radius Over Bucket | 5901 mm |
| Axle | |
| Brand | Meritor-30 |
| Front | Fixed with Calipers |
| Rear | Fixed with Osc.Frame with Calipers |
| Maximum Single-Wheel Rise and Fall | Oscillating ± 12° |
| Brake System | |
| Service Brake | Dry & calipers , Air to oil control |
| Parking Brake | Drum type shoe brake , Spring applied & air released |
| Transmission | |
| Brand | SEM TR100 / B-YJ320B |
| Type | Countershaft, Power shift |
| Travel Speed | |
| Forward 1 | 7.6 km/hr |
| Forward 2 | 13.6 km/hr |
| Forward 3 | 24.5 km/hr |
| Forward 4 | 40.5 km/hr |
| Reverse 1 | 9.2 km/hr |
| Reverse 2 | 32.4 km/hr |
| Service Refill Capacities | |
| Fuel tank | 137 L |
| Cooling System | 30 L |
| Engine Lubricating Oil | 16 L |
| Oil for Converter and Gear Box | 45 L |
| Differentials and Final Drivers | |
| Front | 10 L |
| Rear | 10 L |
| Hydraulic Tank | 90 L |
| Tires | |
| Size | 17.5 – 25 |
| Layer | 12 |
| Textured Type | L3/E3 |
| Air Pressure | Front 343 kPa / Rear 294 kPa |
| Optional Equipment | |
| XiChai 6110 Engine | Feicheng Axles |
| Air Conditioner | Coal Bucket & U type Boom |
| Longer lift arm | Hay Fork |
| Log Grapple | Cab Heater |
| Sand Bucket | QC & Worktools |
| Rock Bucket |

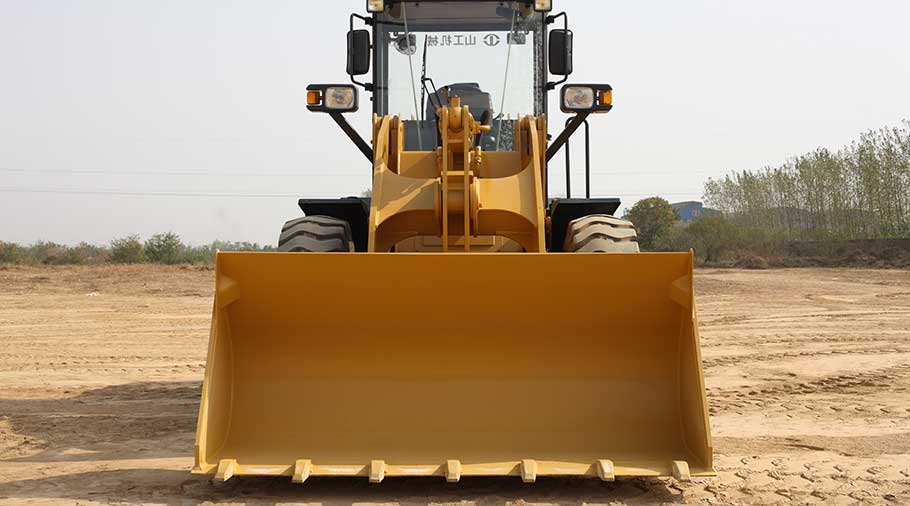

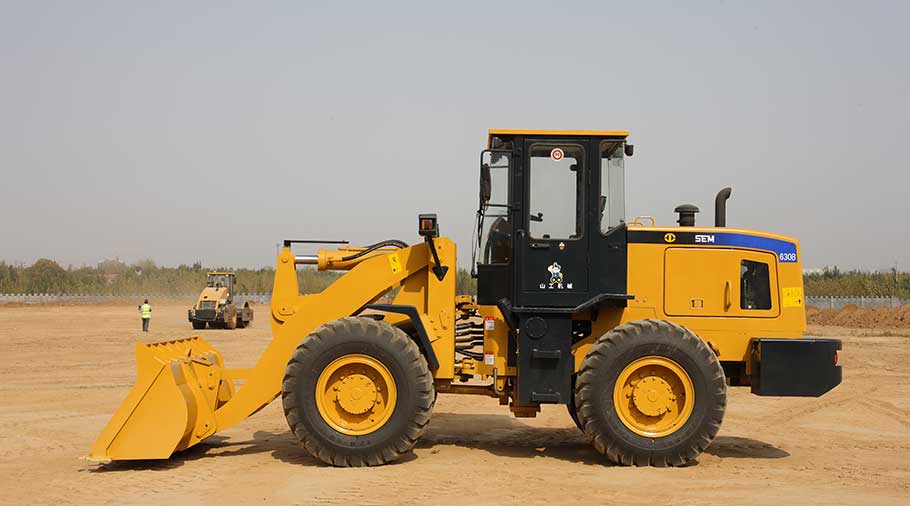

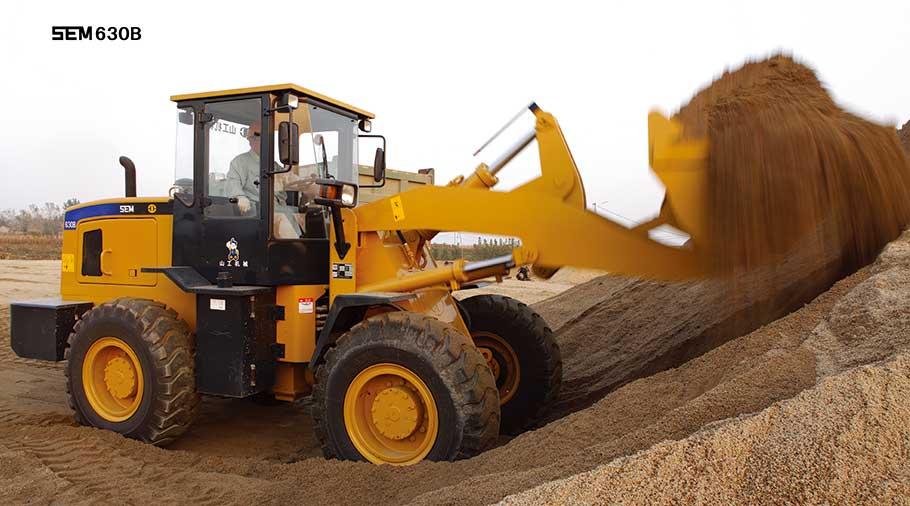

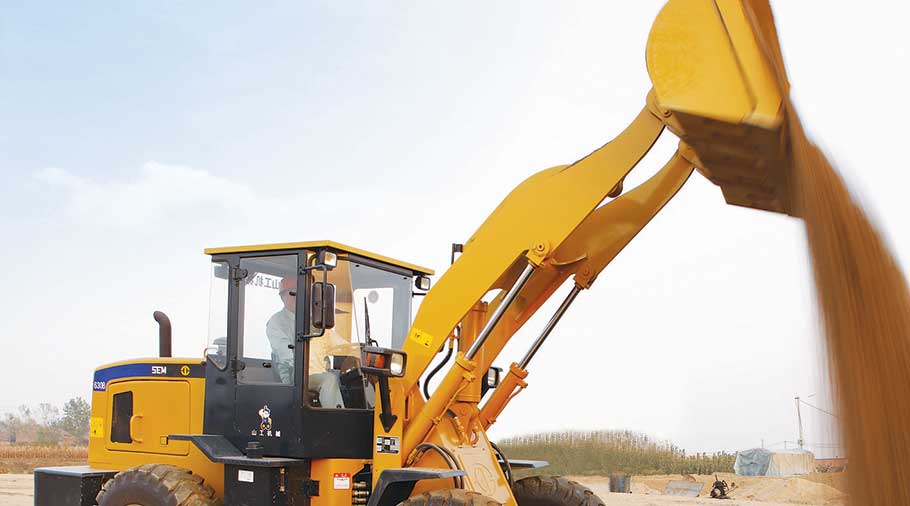

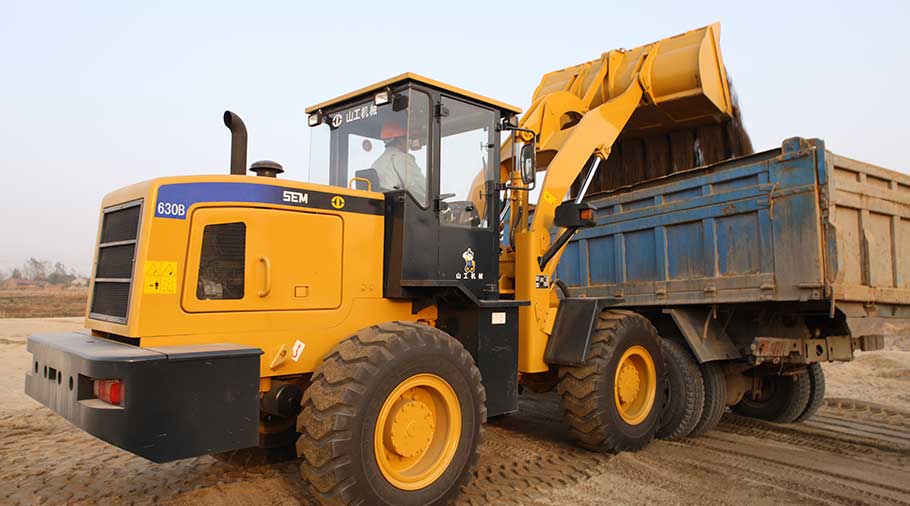

Machine photos
