SEM 518 soil compactor
$58,900.00 $48,950.00
| Brand: Caterpillar/SEM | Type: soil compactor |
| Model: SEM 518 | Hydrostastic drive: No |
| Operating weight: 18,000 kgs | Drum width: 2,310mm |
| Engine power: 129 kw | Warranty: 1 year |
Machine specifications
Vibe Pod Design
- Eccentric vibe pod design, extends system life by 50%
- Steel shot moving inside closed eccentric block, stable and reliable vibe amplitude, reduces impact to motor, prolongs maintenance period of vibratory system,it will be work smoothly toghter with our other road machinery ,big equipment crawler bulldozers ,dump truck etc
- Completely sealed eccentric gear eliminates contamination, prolongs bearing life
Cooling System
- Isolated modular cooling system
- Suction style fan pulls low temperature air through the radiator, providing superior cooling capability
- Optional high ambient cooling system allows the machine to work in ambient temperature up to 50 ℃
- Shunt tank provides constant system pressure and provides easy visual check of coolant level
Vibratory Hydraulic System
- Closed center hydraulic system
- Improves efficiency by 20% over the open center system
- Reduces oil contamination, prolongs life of hydraulic system
- Maintains higher pressure and smaller energy loss
- Allows for simpler hose routing
- Requires smaller volume hydraulic tank, reduces maintenance cost
- World class vibratory hydraulic components
- SEM518 utilize Sauer piston pump and motor
- Vibratory hose
- Utilize Eton hoses and joints, high reliability
- Optimized hose routing, prolongs hose life
Cat ® Product Link™
- Cat ® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.
Machine data

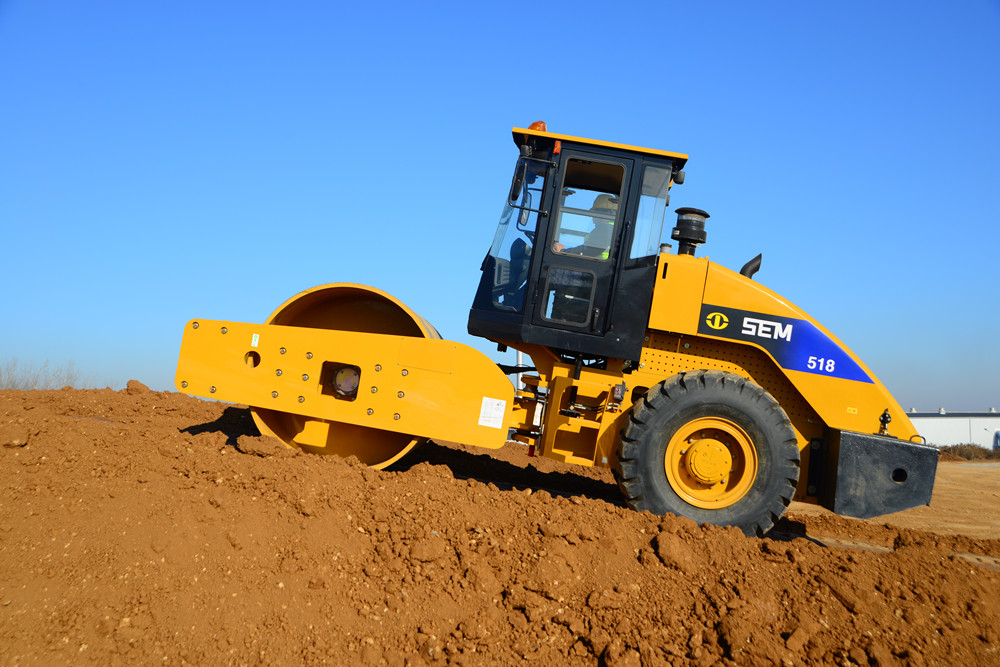

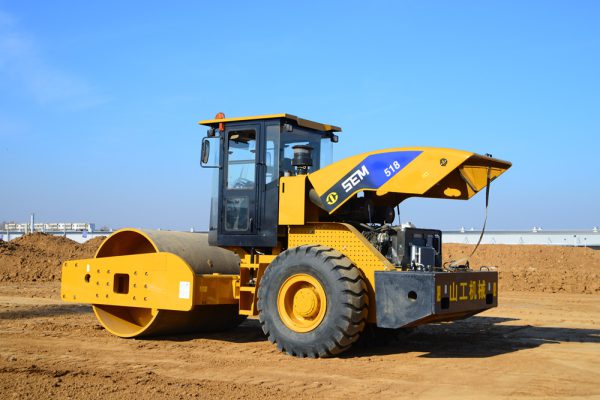

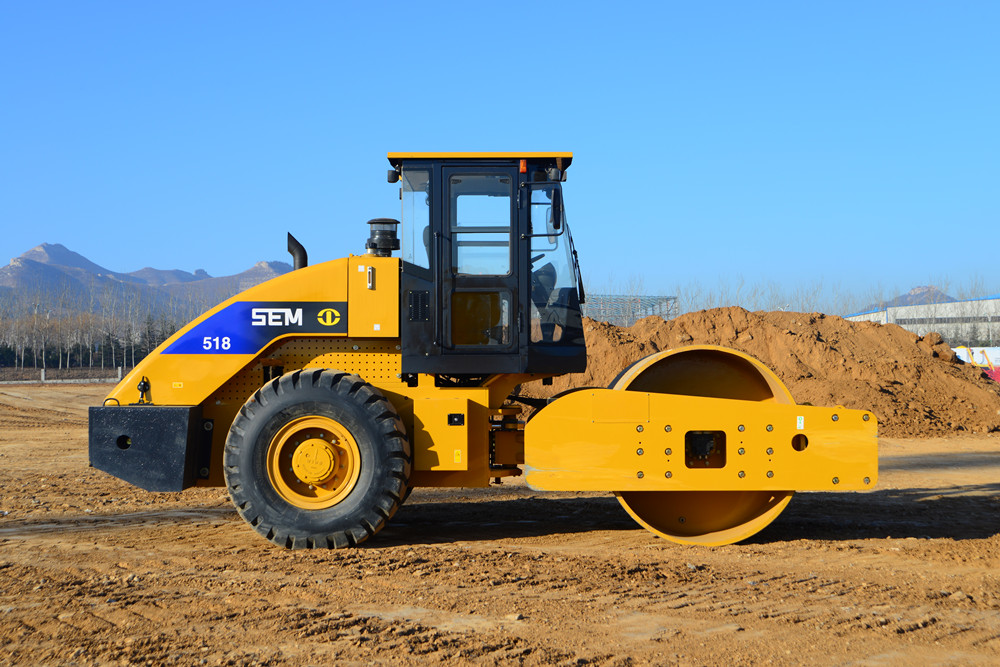

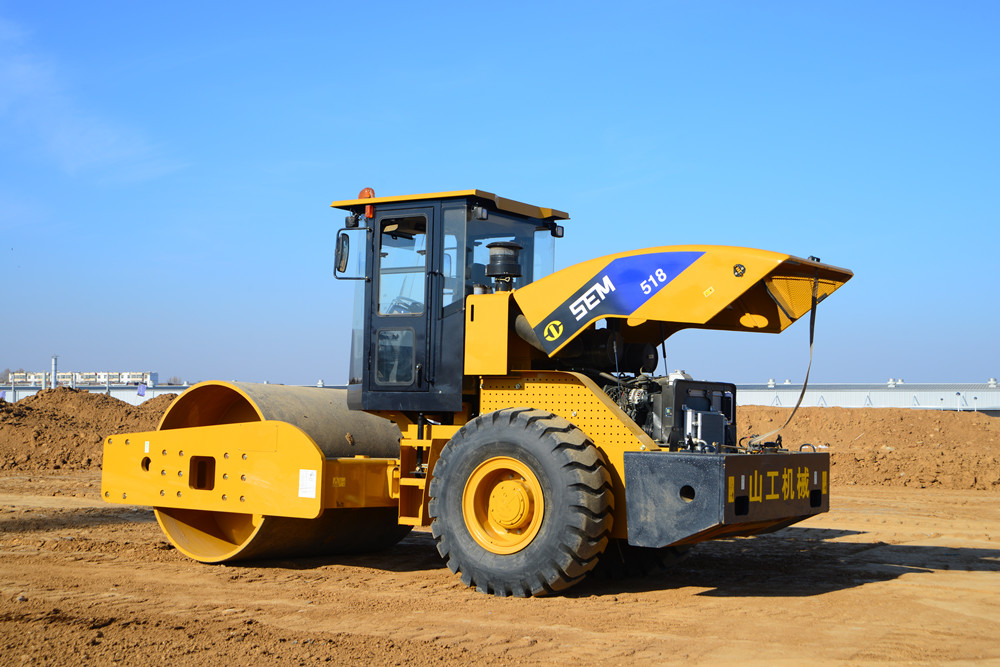

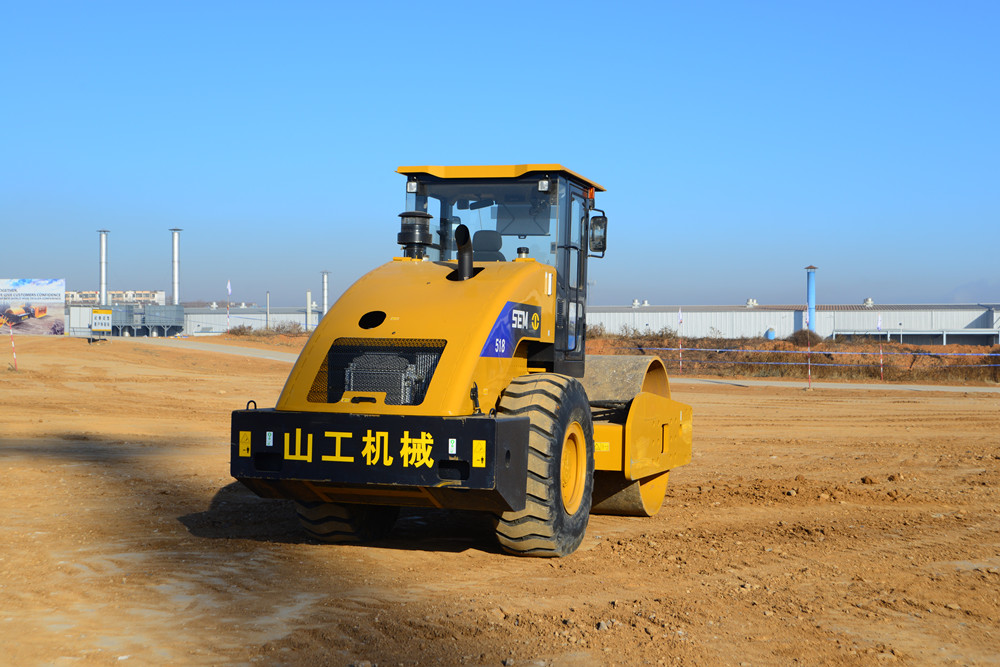

Machine photo
